50CrVA Spring Steel

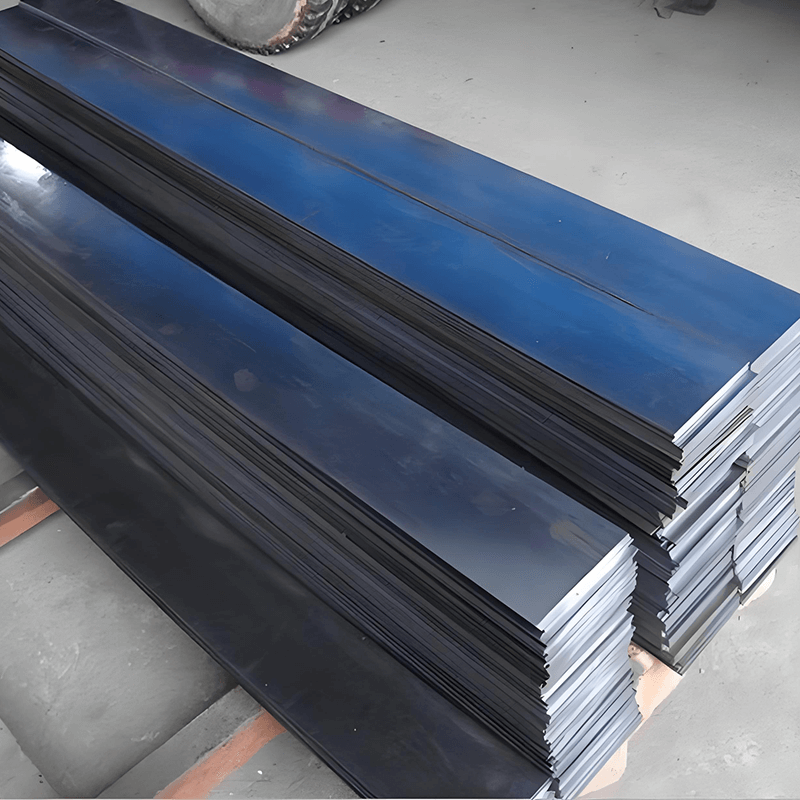

50CrV4 is mainly used for manufacturing large section high load springs, suitable for automotive suspension springs, industrial equipment valve springs, key aerospace components, and core components of heavy machinery. Common specifications include steel plates with a thickness of 2.5-12.0mm and round steel with a diameter of 12-130mm. The elastic properties are optimized through quenching and tempering processes, which comply with standards such as EN 10089. Its high-purity components and strict phosphorus sulfur control (≤ 0.025%) further enhance its fatigue and corrosion resistance.
Availability:
CSiMnS/PCrVNi
Cu
0.46~0.540.17~0.370.50~0.80≤0.0300.80~1.100.10~0.20≤0.35≤0.25


Production process

Good mechanical and processing properties, high hardenability, addition of vanadium refines the grain size of steel, reduces overheating sensitivity, improves strength and toughness, has high fatigue strength, high yield ratio, but poor weldability and low cold deformation plasticity. It is a higher grade spring used for high load important springs with larger cross-sections, as well as valve springs, piston springs, safety valve springs, etc. with working temperatures<300 ℃.


Application examples

  1. Automotive industry

  2. High speed heavy-duty locomotives

  3. Mechanical manufacturing industry
